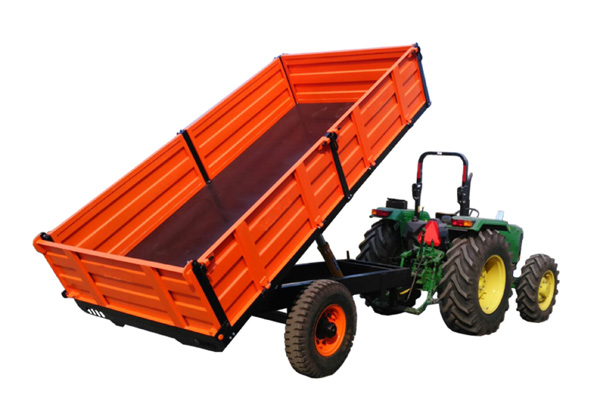

Tipping Trailer

Tipping Trailer

Model Capacity Approx weight (Kg.) Tractor Power (HP) Optional arrangements
2 wheel 3 Ton 3 Ton 1015 30-50 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Side Tipping, Three way tipping Etc.
2 wheel 5 Ton 5 Ton 1180 50-70 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Side Tipping, Three way tipping Etc.
2 wheel 9 Ton 9 Ton 1555 70-90 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Side Tipping, Three way tipping Etc.

Non-Tipping Trailer

Model Capacity Approx weight (Kg.) Tractor Power (HP) Optional arrangements
4 wheel 5 Ton 5 Ton 1550 50-70 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.
4 wheel 9 Ton 9 Ton 1720 70-90 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.
4 wheel 12 Ton 12 Ton 2000 90-110 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.
Non-Tipping Trailer

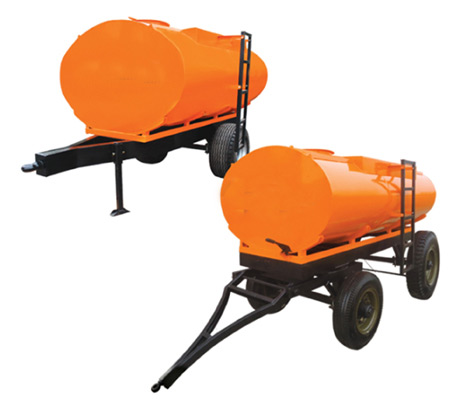

Water Browser / Tanker

Water Browser / Tanker

Model Capacity (Liters) Approx weight (Kg.) Tractor Power (HP) Optional arrangements
3000 Liters 3000 1200 (4 Wheel) / 900 (2 Wheel) 40-55 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.
4000 Liters 4000 1400 (4 Wheel) / 1100 (2 Wheel) 50-75 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.
5000 Liters 5000 1700 (4 Wheel) / 1400 (2 Wheel) 75-95 Leaf spring, Break, Parking light, Indicators, Single Axle 4 wheel, Single Axle 2 wheel, Double Axle 4 wheel, Etc.

The weight, working data and photo of the implement, contained in the present leaflet/website are supplied for information only and are not binding. Specification and size can be altered as part of ongoing R&D work
